仅供临床科研使用
Carotid Studio 了解更多
销售价格： ￥ N/A
商品编号： AS-0024-0543
软件语言： 英文
器械分类： II
生产厂家： Quipu
公司网址： http://www.quipu.eu/
认证信息： CE
系统要求： Windows
交付方式： 下载安装
  • 软件概览
  • 推荐配置
  • 典型病例
  • 软件教程
  • 临床文献
  • 用户评价
  • 产品彩页

软件概览

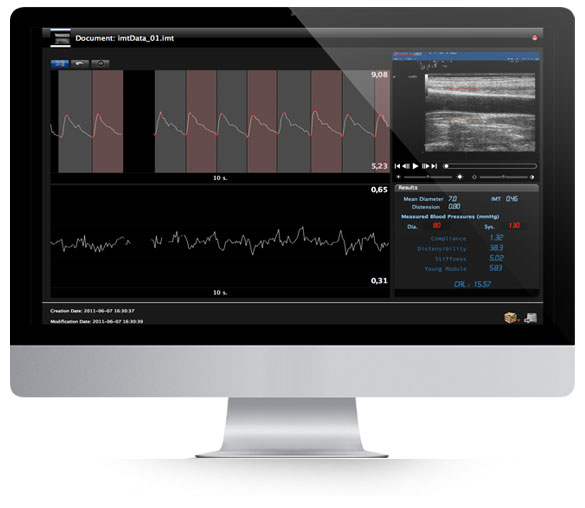

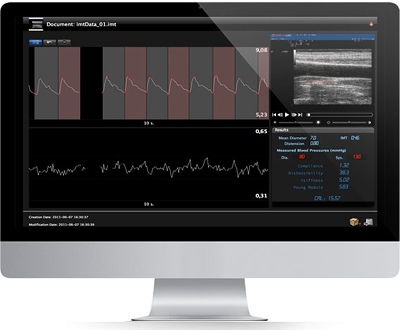

Carotid Studio

Carotid Stiffness and Intima Media Thickness

Simultaneous measurement

Echotracking precision

Easy editing

Real-time analysis

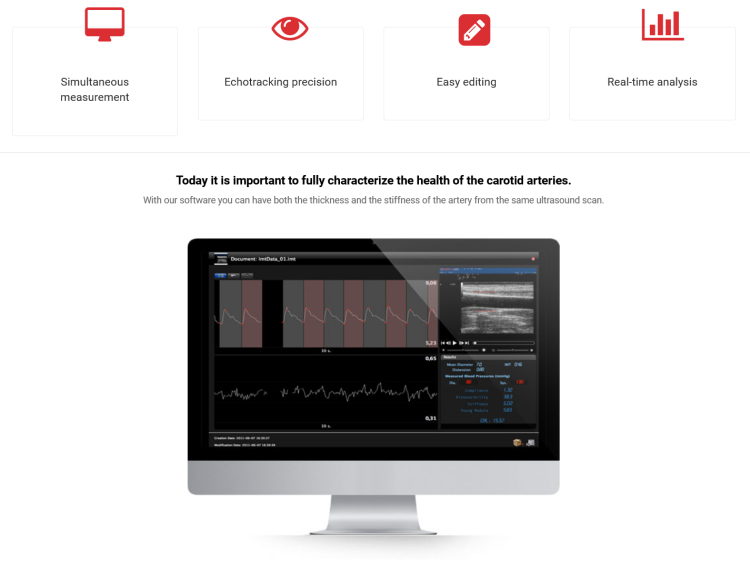

Today it is important to fully characterize the health of the carotid arteries.

With our software you can have both the thickness and the stiffness of the artery from the same ultrasound scan.



Features

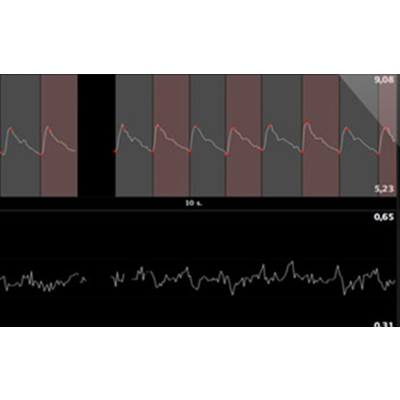

Simultaneous measurement

Monitoring of the parameters of thickness and stiffness of the artery with assessment of the elastic properties of the arterial wall material.

Echotracking precision

The analysis is based on an innovative mathematical operator that overcomes the spatial resolution limitations of the conventional B-mode ultrasound images. With this new technology, a precision comparable with that obtainable with an echotracking system is obtained.

Easy editing

Easy editing and supervision of the signals. The automatic analysis can be corrected and supervised by an expert operator, excluding signals characterized by low signal-to-noise ratio or the presence of outliers.

Real-time analysis

The ultrasound scan can be more easily optimized if real-time image analysis is shown. The real time modality allows the sonographer to perform quicker studies minimizing the possibility of error.

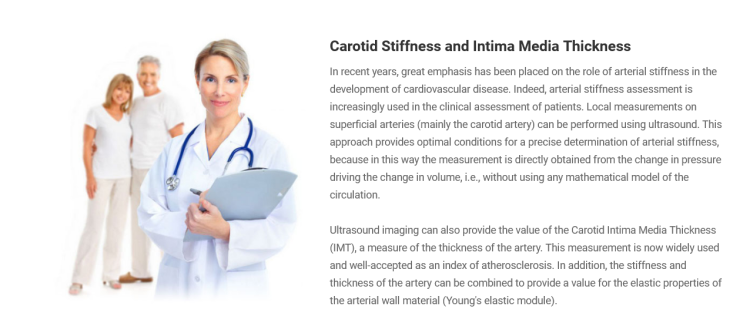

Carotid Stiffness and Intima Media Thickness

In recent years, great emphasis has been placed on the role of arterial stiffness in the development of cardiovascular disease. Indeed, arterial stiffness assessment is increasingly used in the clinical assessment of patients. Local measurements on superficial arteries (mainly the carotid artery) can be performed using ultrasound. This approach provides optimal conditions for a precise determination of arterial stiffness, because in this way the measurement is directly obtained from the change in pressure driving the change in volume, i.e., without using any mathematical model of the circulation.

Ultrasound imaging can also provide the value of the Carotid Intima Media Thickness (IMT), a measure of the thickness of the artery. This measurement is now widely used and well-accepted as an index of atherosclerosis. In addition, the stiffness and thickness of the artery can be combined to provide a value for the elastic properties of the arterial wall material (Young's elastic module).



Validation

Carotid Studio has been validated in 87 healthy subjects (mean age 48 ± 14 years) and 311 patients with more than one cardiovascular risk factor (mean age 58 ± 11 years). Carotid Intima Media Thickness was greater in patients than in healthy subjects (0.75 ± 0.26 mm vs 0.68±0.15 mm, p = 0.001), Carotid studio has been compared with echo-tracking technology to evaluate the accuracy of carotid intima media thickness (IMT), diameter (D) and stroke changes in diameter (ΔD) measures. Bland Altman analysis showed a bias ± standard deviation of 0.006 ± 0.039mm for IMT, 0.060 ± 0.110mm for D and 0.016 ± 0.039mm for ΔD. In addition, reproducibility was evaluated and intra-observer CVs were 6 ± 6% for IMT, 2 ± 1% for D and 8 ± 6% for IMT. Results showed that Carotid Studio overcomes the limitations of standard image analysis and that it is a suitable device for measuring IMT and local arterial stiffness parameters in clinical studies.

Carotid studio is one of the automatic measurement systems considered by the European Network for Non-Invasive Investigation of Large Arteries.


Equipments

Our probe holder especially designed for FMD studies. The video acquisition hardware devices that you can use with Cardiovascular Suite.


Cardiovascular Suite 4 User Manual.

A printed copy of the User Manual and Instruction for Use can be requested at support@quipu.eu


Video tutorial

See how to install, configure and use Cardiovascular Suite.


Brochure

推荐配置

Trial Version

Ver 4.6.1 (build 105) Jul 11, 2023

We invite you to download a 14-day fully functional trial version of Cardiovascular Suite, including FMD Studio and Carotid Studio. The software runs on Apple and Windows Computers, activation by email and Internet connection are required.


Minimum system requirements:

APPLE COMPUTER

Apple Mac Computer with: Intel Core i5 5th generation 2.3 GHz Turbo boost, 4GB RAM, 1GB free Hard Disk space*, USB 3.0 port, 1280x800 monitor resolution, Mac OS X 10.12 - 10.15.

MICROSOFT WINDOWS COMPUTER

Intel Core i5 5th generation 2.3 GHz Turbo boost, 4GB RAM, 1GB free Hard Disk space*, USB 3.0 port, 1024x768 monitor resolution.

Microsoft Windows 7 64 bit, Windows 8.1 64 bit, Windows 10 64 bit, OpenGL ES 2.1.

(*) 250GB free Hard Disk space is suggested for the Archive


Suggested computer:

APPLE COMPUTER

MacBook Air o MacBook Pro, processor M2 or later, 8-16GB RAM, 512GB SSD (larger for more than 1000 FMD studies), Display 13’’-16’’, macOS 13 or superior.

MICROSOFT WINDOWS COMPUTER

Laptop with Intel Core i5-i7 12000+ or AMD Ryzen 5-7 5000+, 16GB RAM, 512GB SSD (larger for more than 1000 FMD studies), Display 14’’-16’’, resolution 1920x1080, Windows 10 or 11.
