仅供临床科研使用
LEXI ZedKnee 3D 了解更多
销售价格: N/A
商品编号: SP-0009-0058
软件语言: 英文
器械分类: II
生产厂家: LEXI Co., Ltd.
公司网址: www.lexi.co.jp/en
认证信息: PMDA
系统要求: Windows
交付方式: 下载安装
  • 软件概览
  • 推荐配置
  • 典型病例
  • 软件教程
  • 临床文献
  • 用户评价
  • 产品彩页

软件概览

Overview

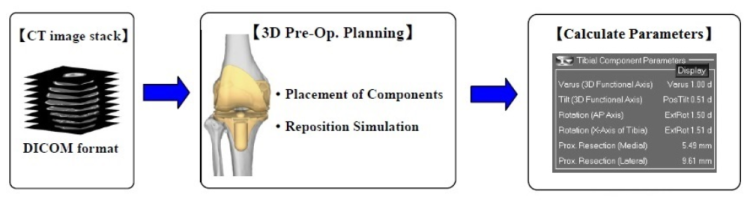

ZedKnee creates 3D models of the bone using CT data, and supports planning and assessing TKA (Total Knee Arthroplasty) and UKA (Unicompartmental Knee Arthroplasty).
User can perform surgical simulations (such as positioning of implants, calculation of parameters, etc.) in simple steps, and also calculate ROM (Range Of Motion) of the knee.



Features

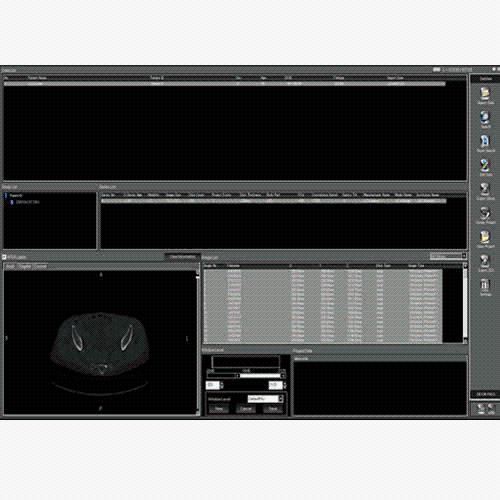

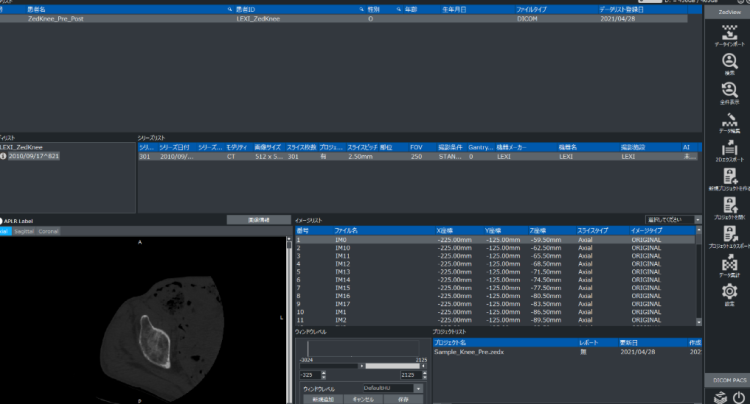

Database of Patient Records

User can import CT data (in DICOM format) into a database application.

Patient information (such as name, sex, date of birth, etc.) can be managed uniformly.

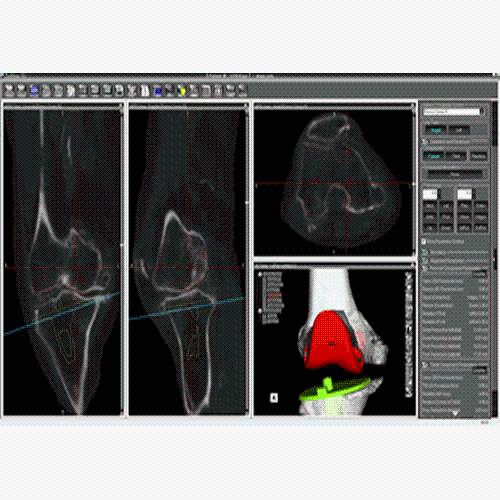

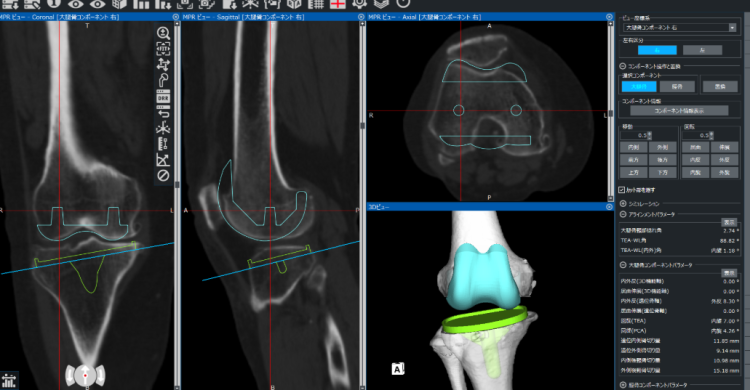

Positioning of Implants

User can select femoral and tibial components from a library of commercially-available implants.
Implants can be placed at optimal positions on 3D model and MPR (multi-planar reconstruction) images.

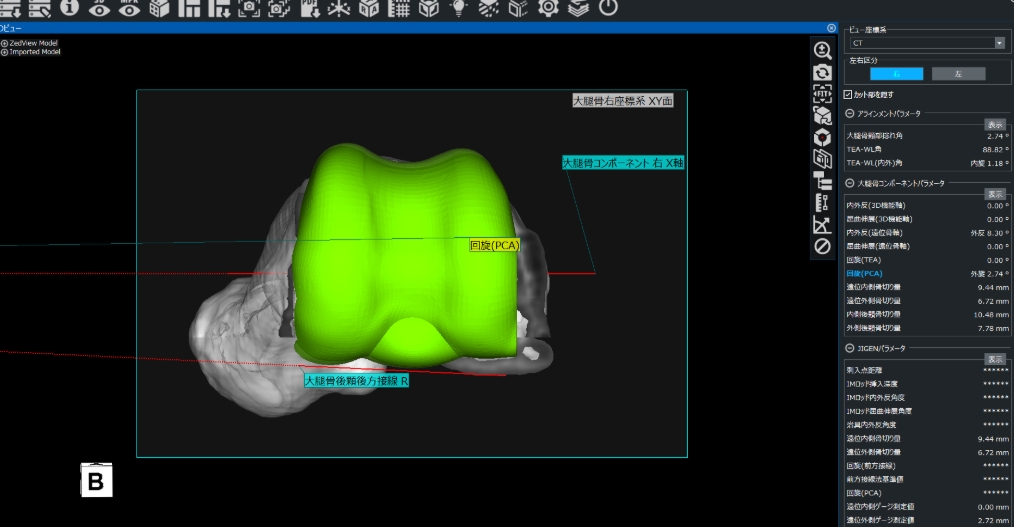

Calculation of Parameters

ZedKnee can calculate parameters (such as flexion, rotation, resection amount, etc.) using reference points and coordinate axes.

Results can be used intra-operatively to perform surgery accurately.



Post-Operative Assessment (Optional)

User can compare and assess how implant placement parameters have been changed and placed against the reference plane or reference axis as well as how much the alignment has changed after the operation as compared with pre-operative plans made with ZedKnee 3D.




推荐配置

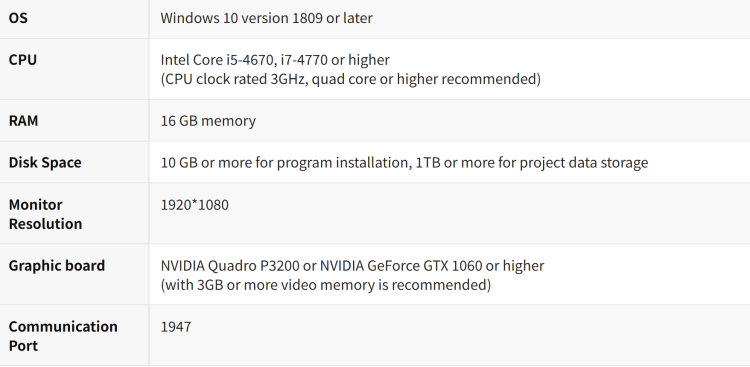

系统要求



ZedView uses Sentinel HASP (SafeNet/Gemalto), to provide software license keys for all ZedView modules. The Sentinel HASP driver uses communications port 1947 on your computer.

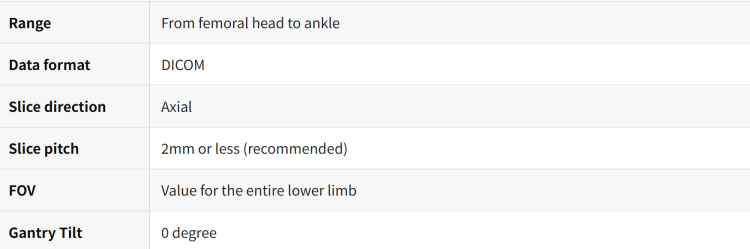

Conditions for CT image



典型病例


软件教程


临床文献


用户评价


产品彩页
