Software (VX2D)

销售价格：	￥面议
商品编号：	3D-0256-1747
软件语言：	英文
器械分类：	II
生产厂家：	3D Industrial Imaging Co.,Ltd.
公司网址：	http://dentiqsolution.com/
认证信息：	FDA
系统要求：	Windows
交付方式：	下载安装

软件概览
推荐配置
典型病例
软件教程
临床文献
用户评价
产品彩页

软件概览

Description

2D X-Ray Imaging Software for Measurement and Analysis of 2D slice Data

VX2D is 3DII's 2D X-ray imaging software for measuring and analyzing 2D slice data. VX2D offers various measurement tools and can export the measurement information to Excel. VX2D also enables users to perform more advanced analyses using various filtering functions. The Ball Void Detection Module is an optional module of VX2D for the automated X-ray analysis of solder balls.

Features

Supported image formats: *.bmp, *.jpg, *.raw

Exports the measurement information to Excel

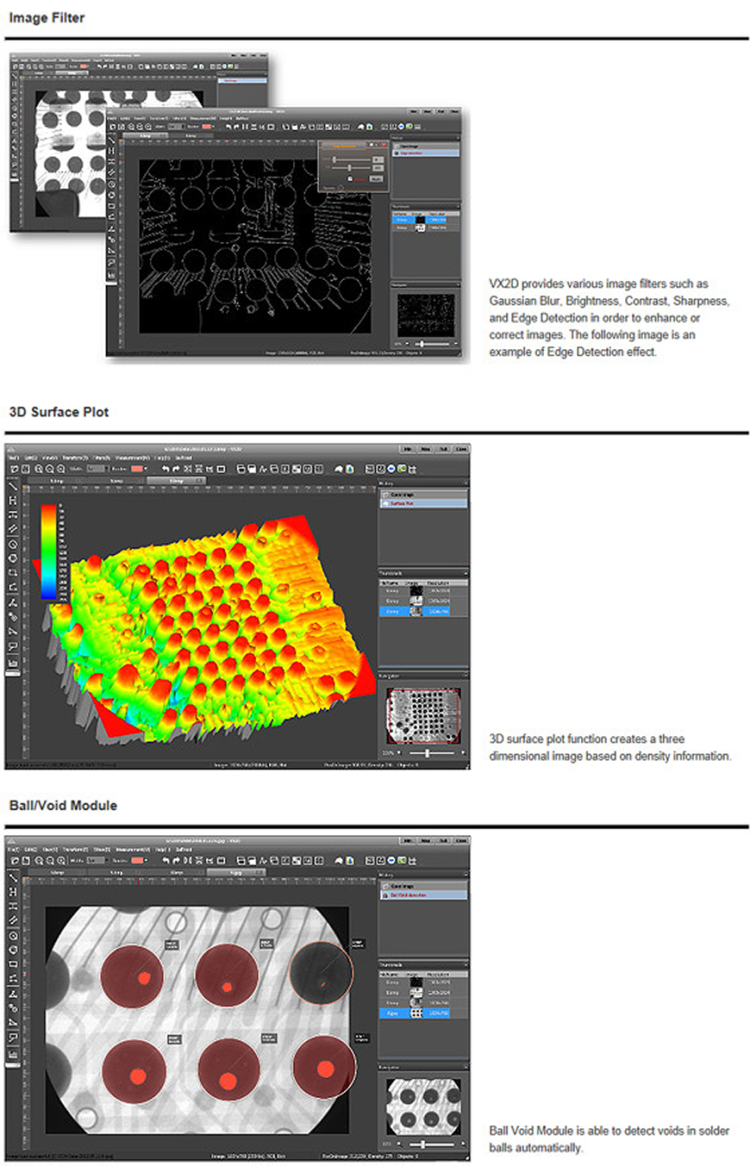

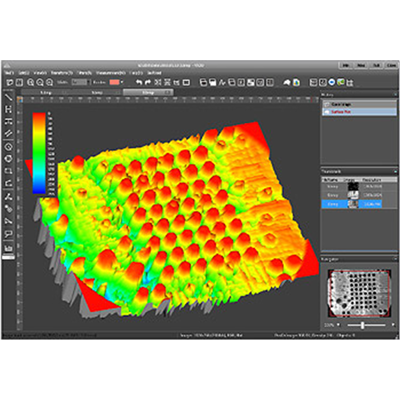

3D surface plot function for creating a 3D image based on density information

Unit conversion function

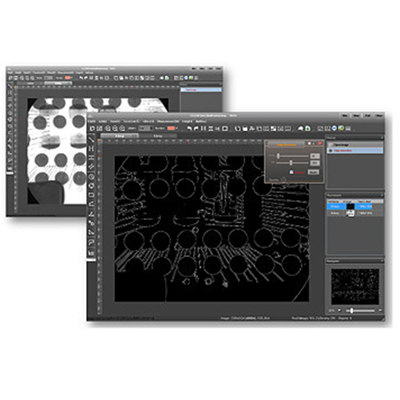

Various image filtering functions: Gaussian, brightness/contrast, sharpness, edge detection filters, etc.

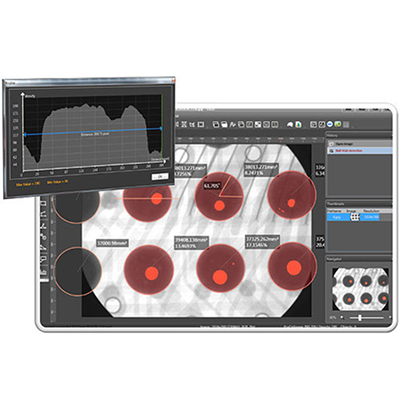

Ball Void Detection Module can inspect the following features:

Missing solder balls

Void size

Void percentage

Number of void
