Description

3D Computed Tomography Software for Visualization and Analysis of Volume Data

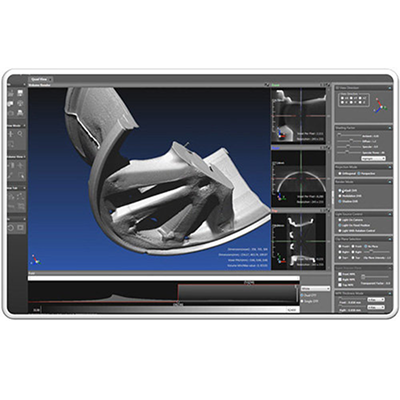

VX3D is 3DII's software platform for the visualization and analysis of CT data. VX3D offers intuitive visualization solutions such as auto cropping, clipping, and zoom cube functions. VX3D also provides users with various measurement tools and powerful reporting functions for 2D or 3D data analysis.

Vx3D was specially developed for practical and industrial CT applications. VX3D is able to perform defect analysis for industrial purposes by adding optional modules, such as VXP (porosity detection module)and VXEI(electronic chip inspection module)

Features

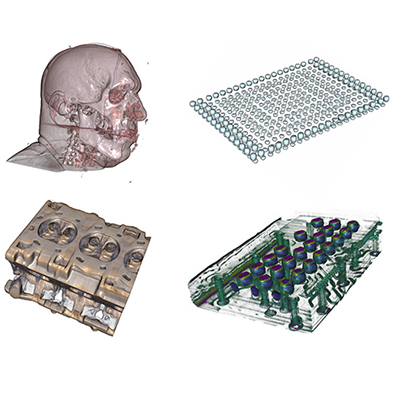

2D and 3D visualization of volume data

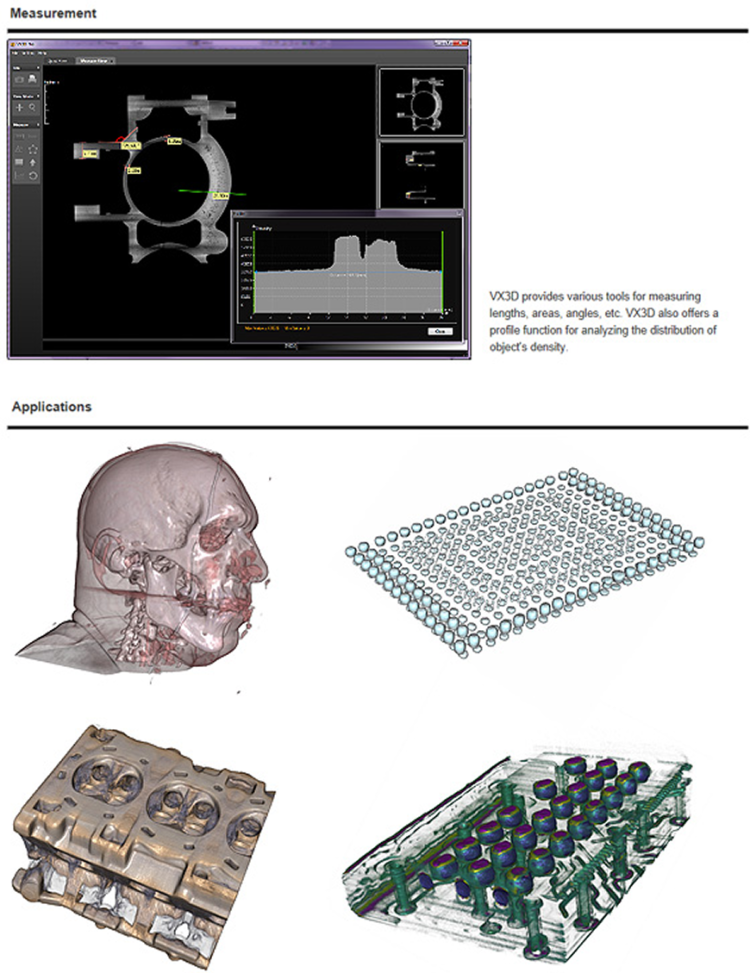

Provides various tools for 2D or 3D measurement:

Poly-line lengths, distances, angles, areas, etc.

Profile function for density information

Reporting tools

No limit on data quantity (depending on system memory)

GPU-accelerated optimization

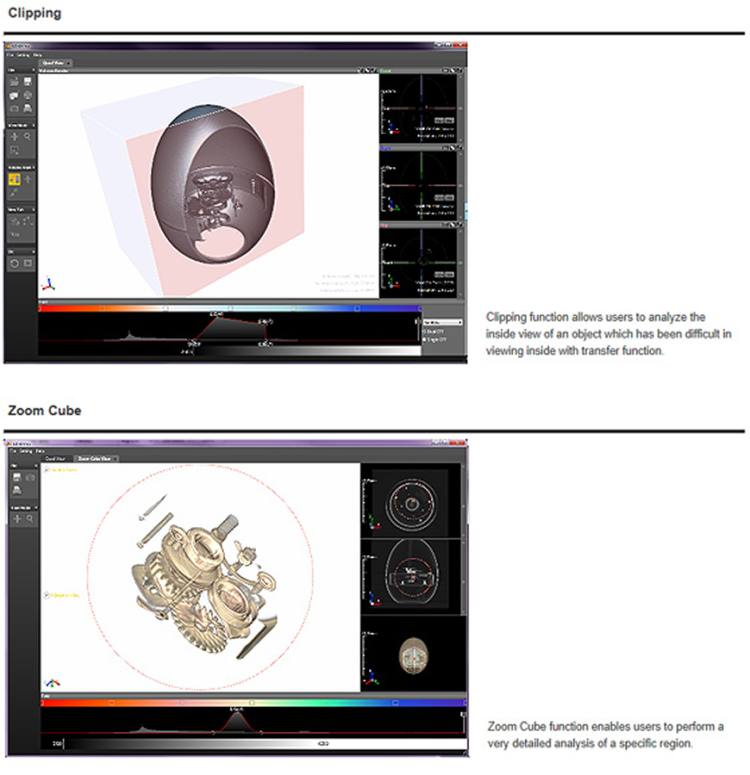

Clipping function for analyzing the inside of an object in any desired direction

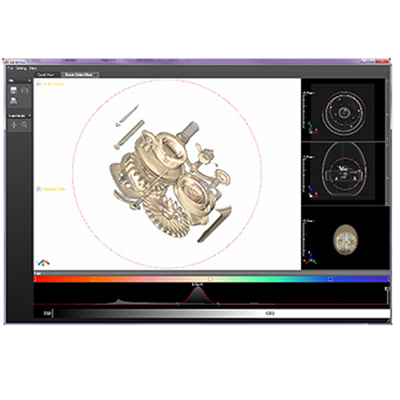

Zoom cube function for analyzing the volume of interest

Auto cropping function for reducing the rendering time

Currently available add-on modules:

VXPI (porosity detection module)

VXEI (electronic chip inspection module)
